Plug Flow

Static mixers, also called motionless mixers, or inliners, have the effect of reducing the velocity difference across a pipe, hence the plug flow type.


This type of flow regime can be extremely advantageous when dealing with certain types of reactions, dosing and sampling systems, etc.


An ideal plug-flow reactor assumes ideal mixing (red line), where no back mixing occurs. Backmixing is more common in a stirred tank reactor utilizing a dynamic mixer.

Plug Flow
Plug Flow


Diagram of flow in an empty pipe verses plug flow created by a static mixer (inliner).

Plug Flow Pattern

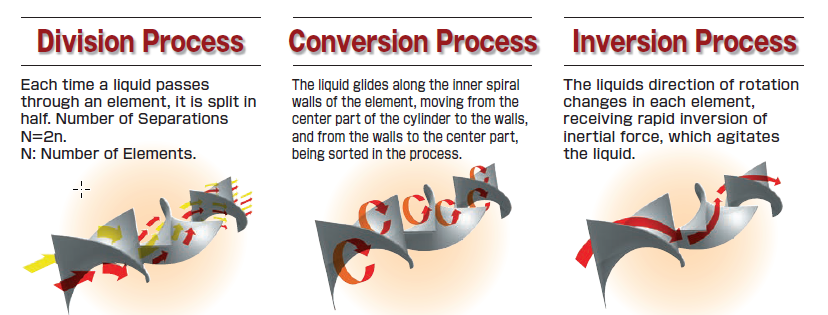

Pictorial of the effect of successive elements splitting and blending the flow until a homogeneous mixture is achieved.

Plug Flow Splitting
